Production - mixing of special thick colored plaster
 click to enlarge |
 click to enlarge |
 click to enlarge |

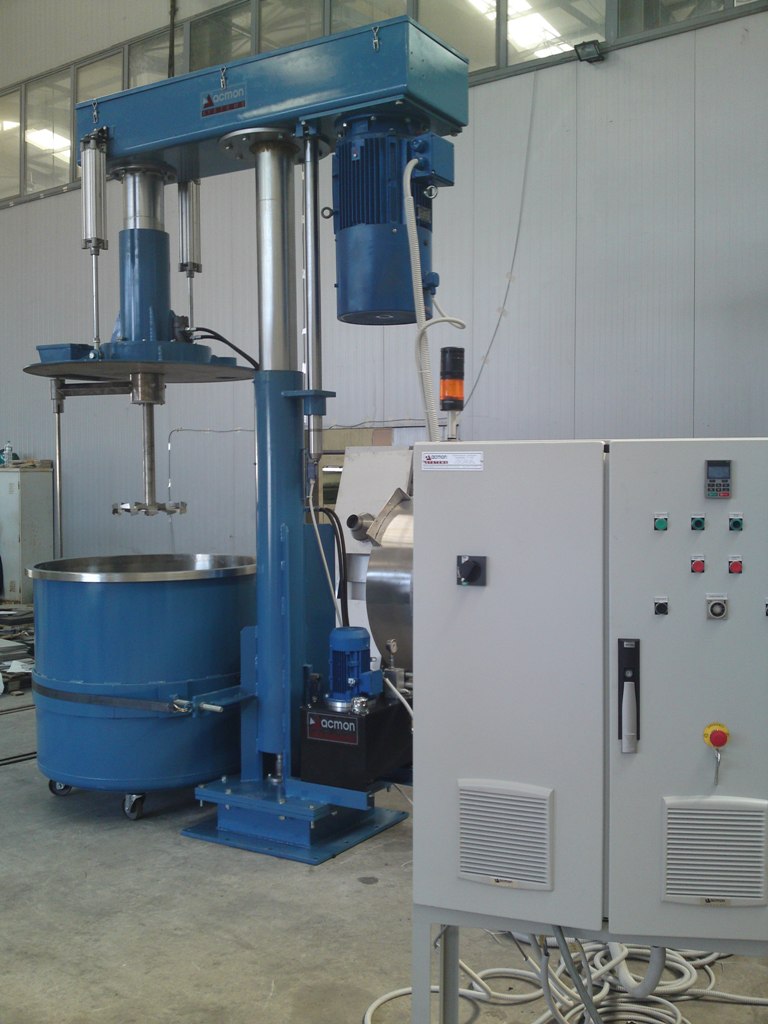

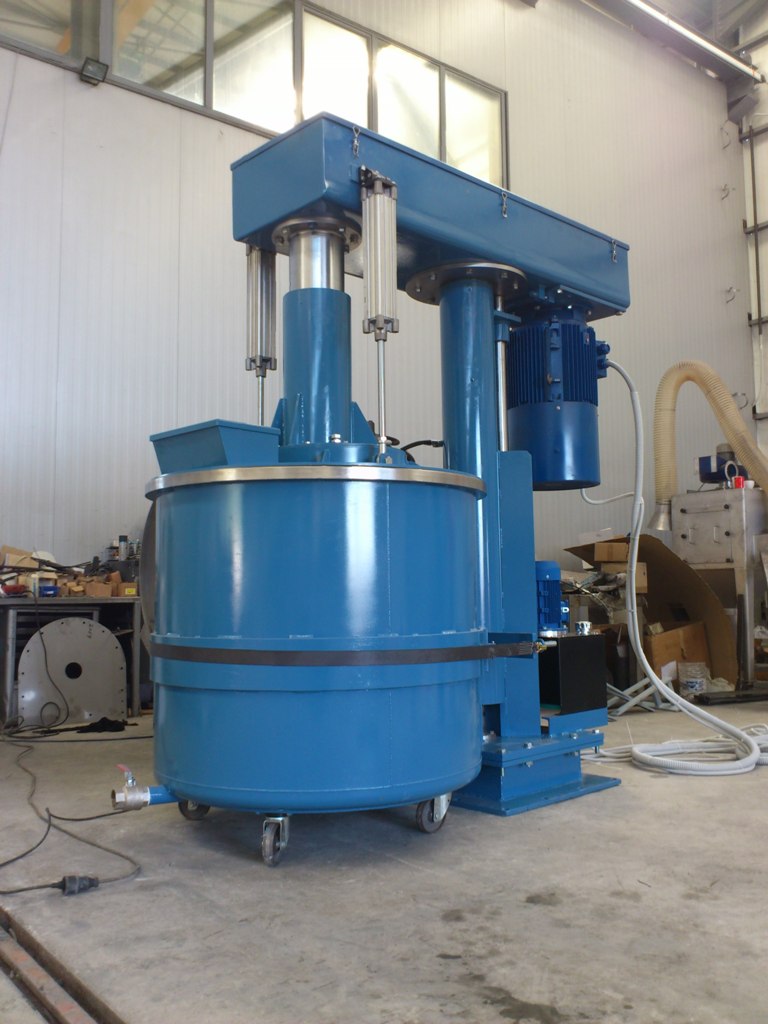

Manufactured and delivered in full operation, in March 2012, Turbodisperser type 304/1, for the production of special thick colored plaster.

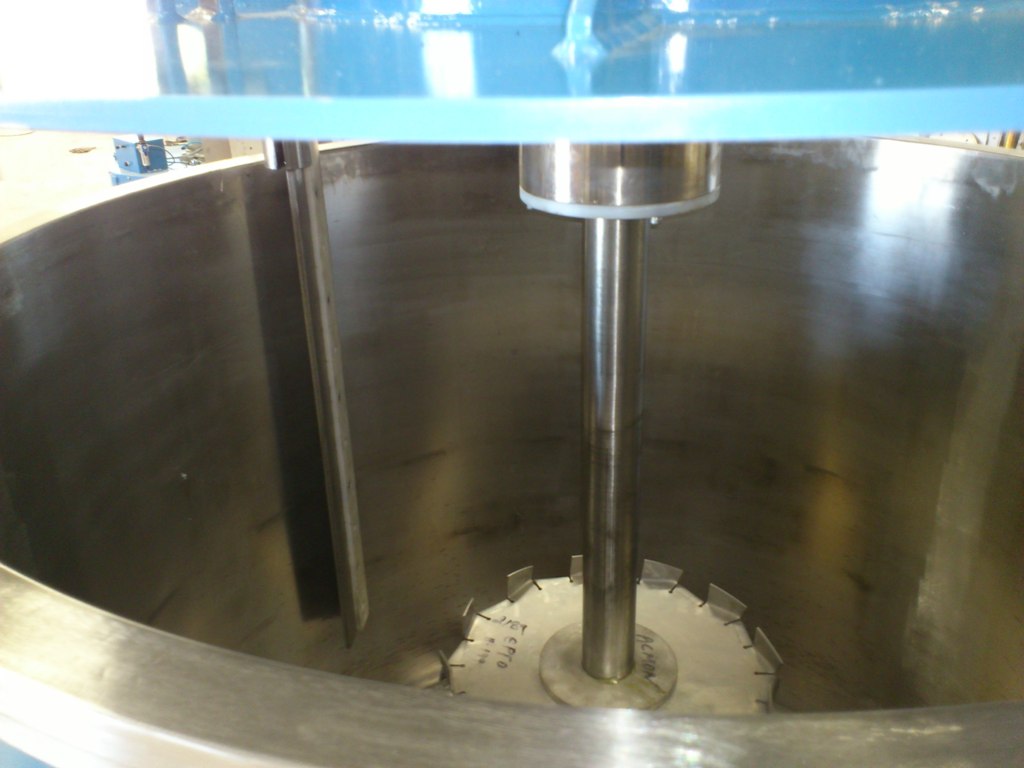

Turbodisperser type 304/1, is a disperser/dissolver, mixing materials for middle and high viscocity. It consists of a central axis high speed, and a "scraper" on the sides of the container. The lid includes a special entrance for feeding powder or liquid, and all steel parts are stainless steel. The movable part is driven by a hydraulic axis.
| Usable Capacity (L) |
Motor Power (kw) |
W (mm) |
L (mm) |
L (MAX) (mm) |
Weight (kg) |
| 1000 | 40 | 2415 | 800 | 3668 | 2000 |
View the product brochureSee also at Projects Overview:
